제품소개
협동 로봇
CRX-30iA
FANUC Robot CR-35iB is a 35kg (Max.50kg) payload collaborative robot that can work without safety fences.
This robot can work in cooperation with a human operator without safety fences. (Ex. parts assembling, workpiece transfer)
| Max. load capacity at wrist | 30kg |
|---|---|
| Reach | 1756mm |
| Controlled axes | 6 |
| Repeatability | ±0.04mm |
| Mechanical weight | 135kg |
| Average power consumption | 1.5kw |
| Ambient temperature | 0-45°C |
CRX-10iA
FANUC Robot CR-35iB is a 35kg (Max.50kg) payload collaborative robot that can work without safety fences.
This robot can work in cooperation with a human operator without safety fences. (Ex. parts assembling, workpiece transfer)
| Max. load capacity at wrist | 10kg |
|---|---|
| Reach | 1249mm |
| Controlled axes | 6 |
| Repeatability | ±0.04mm |
| Mechanical weight | 40kg |
| Average power consumption | 1kw |
| Ambient temperature | 0-45°C |
CRX-3iA
FANUC Robot CR-35iB is a 35kg (Max.50kg) payload collaborative robot that can work without safety fences.
This robot can work in cooperation with a human operator without safety fences. (Ex. parts assembling, workpiece transfer)
| Max. load capacity at wrist | 3kg |
|---|---|
| Reach | 692mm |
| Controlled axes | 6 |
| Repeatability | ±0.02mm |
| Mechanical weight | 11kg |
| Average power consumption | 1kw |
| Ambient temperature | 0-45°C |

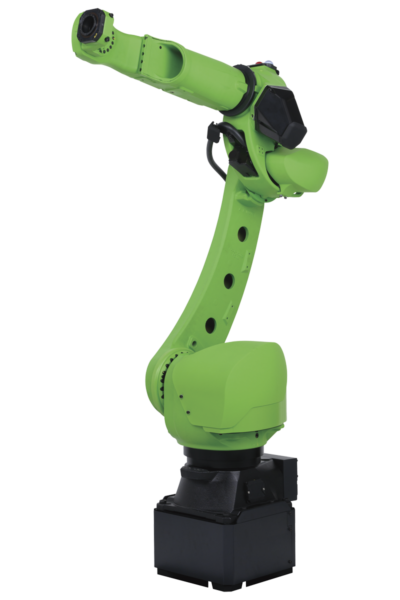

CR-35iB
FANUC Robot CR-35iB is a 35kg (Max.50kg) payload collaborative robot that can work without safety fences.
This robot can work in cooperation with a human operator without safety fences. (Ex. parts assembling, workpiece transfer)
| Max. load capacity at wrist | 35kg |
|---|---|
| Reach | 1831mm |
| Controlled axes | 6 |
| Repeatability | ±0.03mm |
| Mechanical weight | 375kg |
| Average power consumption | 1kw |
| Ambient temperature | 0-45°C |
